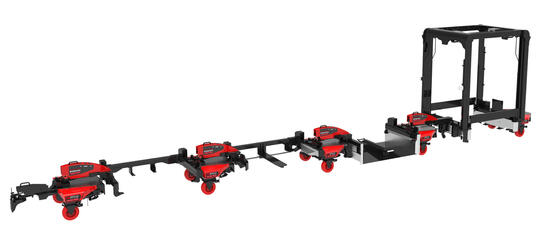

Equipment load train Factory Train FT500
Chassis and load capacity
- FT510 (1,000 kg)
- FT516 (1,600 kg)
- FT520 (2,000 kg)
Standard equipment
- Electric stepless lifting gear for stable and consistent lifting characteristics
- Electric spindle with scissor lift
- Individually controllable lifting functions of the load carriers
- Central operation from operating panel on tow tractor, or directly from the module
- Integrated spring system in the lifting gear
- Bandage tyres
- Electronic steering with possible diagonal travel ("Crabbing")
- Reverse travel
- Automatic speed reduction of the entire load train in corners
- Intelligent CAN-Bus control for permanent communication between tow tractor and modules
- Low-noise operation due to backlash-free connection and suspension
- Drive release only possible with raised lifting gear
- Automatic tow tractor interlocking when load carriers are lowered
- Overload protection for the lifting gear
- Operating hours meter and Service lamp
Available options
- Electric single-wheel brake system with ABS function
- Outdoor package with SE double tyres
- Wind and rainproof weather protection system with mechanical or electric sliding gate
- Lighting system with rear; brake, indicator lights and rotating beacon
- Customised painting of the module panels as well as printing on the weather protection tarpaulins
- Passage barrier tape
- Profile/clearance lights
- Remote diagnostics
- Further options on request
